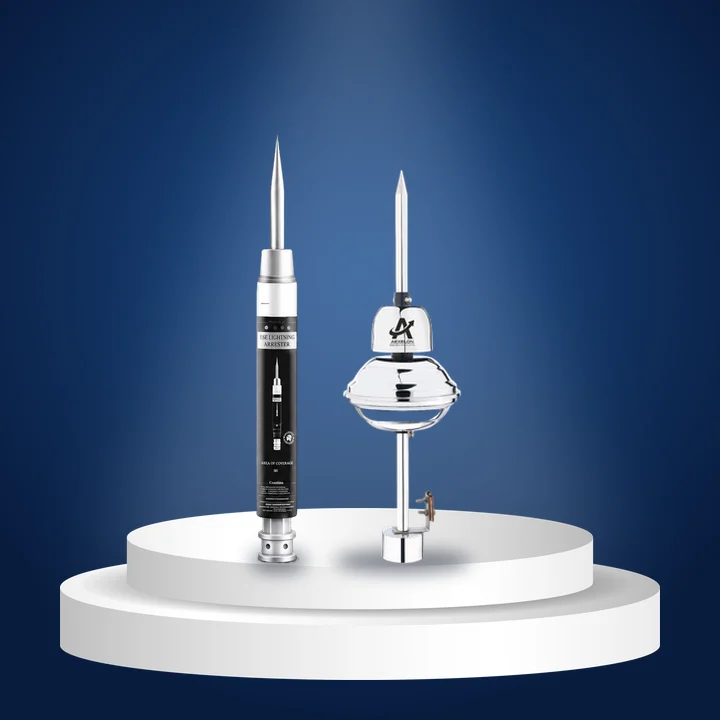

Aexelon Early Streamer Emission (ESE) lightning terminal can anticipate all other elements and items within its protectable range according to its protection level radius by intercepting the lightning strikes and conducting these strikes into the earth through the safest and projected ways.
Aexelon ESE Terminal works on the principle of creating IONS by its internal ION GENERATION channels. This structure itself allows the terminal to conduct the high voltage lightning strikes, even up to 200kA, to the earthing system and then to the earth in the safest way.
| Parameter | Specification |
|---|---|
| Material | Stainless Steel |
| Weight | 4.20 kg |
| Ext. Diameter | 187 mm |
| Length (h) | 63 cm |
| Box Length | 67 cm |
| Rod Diameter | 20 mm |
| Adapter Diameter | 65.5 mm Male |
| IP Code | IP 67 |
| Working Temperature | -25°C / 90°C |
| Type of Terminal | Electro atmospheric |
| Internal Insulation | High Density Polyurethane Resin |
| Standard | NFC 17-102/2011 |
| Grounding Method | Wire/Tape |
| Max. Current Withstand (10/350µs) / ~2.5 MJ/Ω | 200 kA |
| Advance Time (ΔT) | 60.0 µs |
| Height (m) | Level 1 | Level 2 | Level 3 | Level 4 |
|---|---|---|---|---|
| 2 | 31 | 35 | 39 | 43 |
| 3 | 47 | 52 | 58 | 64 |
| 5 | 79 | 86 | 97 | 107 |
| 10 | 79 | 88 | 99 | 109 |
| 20 | 80 | 89 | 102 | 113 |
